Mini 60

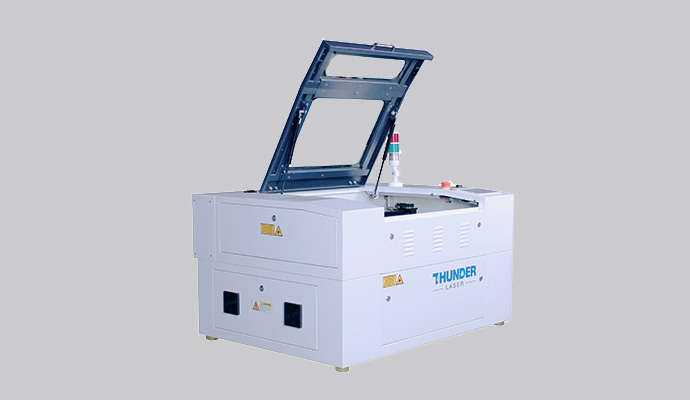

Our desktop Mini 60 40 watt laser engraver is a suitable tool for basic makers to start. Cutting, marking and engraving is just the beginning. Combine to create a huge array of designs and products.

Features

What's Included

Specs

Zubehör

Features

What's Included

Specs

Laser System		Mini 60
Engraving / Working Area		23.6″ x 15.7″ x .4″
Max Part Size		Pass through closed: 27.6″ x 20.9″ x .4″ Pass through open: 27.6″ x ∞“ x .4″
Laser Wattage		40w
Intelligent Memory Capacity		Multiple File Storage up to 128MB
Laser Source		Sealed CO2 Glass Tube, stringintly tested to pass Quality Control. Average lifespan is 2000-4000 working hours. Replacement cost $250 (40w)
Electrical Requirements		Standard 110v AC 60Hz Single Phase, dedicated 15A circuit
Air Assist		Air pump 5-7psi included
Machine Size		42.1″ x 31.1″ x 12.3″
Software		Excluding lightburn software, you can purchase a $80 lightburn DSP license key.
Camera System		Optional ThunderCam allows you to see materials on the laser bed via the software for easy positioning of engravings on strange-shaped objects.
Operating Modes		Optimized raster, vector, or combined modes
Easy Adjustable Home		When engraving items that are not easily placed at the top corner of the laser, you can set a new home position by hand with a new origin
Motion Control System		Standard stepper motors with engraving speeds up to 600mm/s (23″/second)
Resolution		Up to 500dpi with included 2″ head or 800dpi with HR head
Safety		Open cover protection, no-water protection, heat alarm system
Auto Focus		Infrared Auto-Focus system to easily bring material into focus
Belts		High-quality fiberglass reinforced neoprene belts
Water Chiller		CW3000
Laser Heads		„2“ Head/ Lens included, optional HR head
TL-Timer (Smart Board)		Relay switch that controls exhaust and air assist so they stop running when laser is not working
Warning Light		Visible red / green light on machine so you know when job is finished
Support		Free lifetime support
